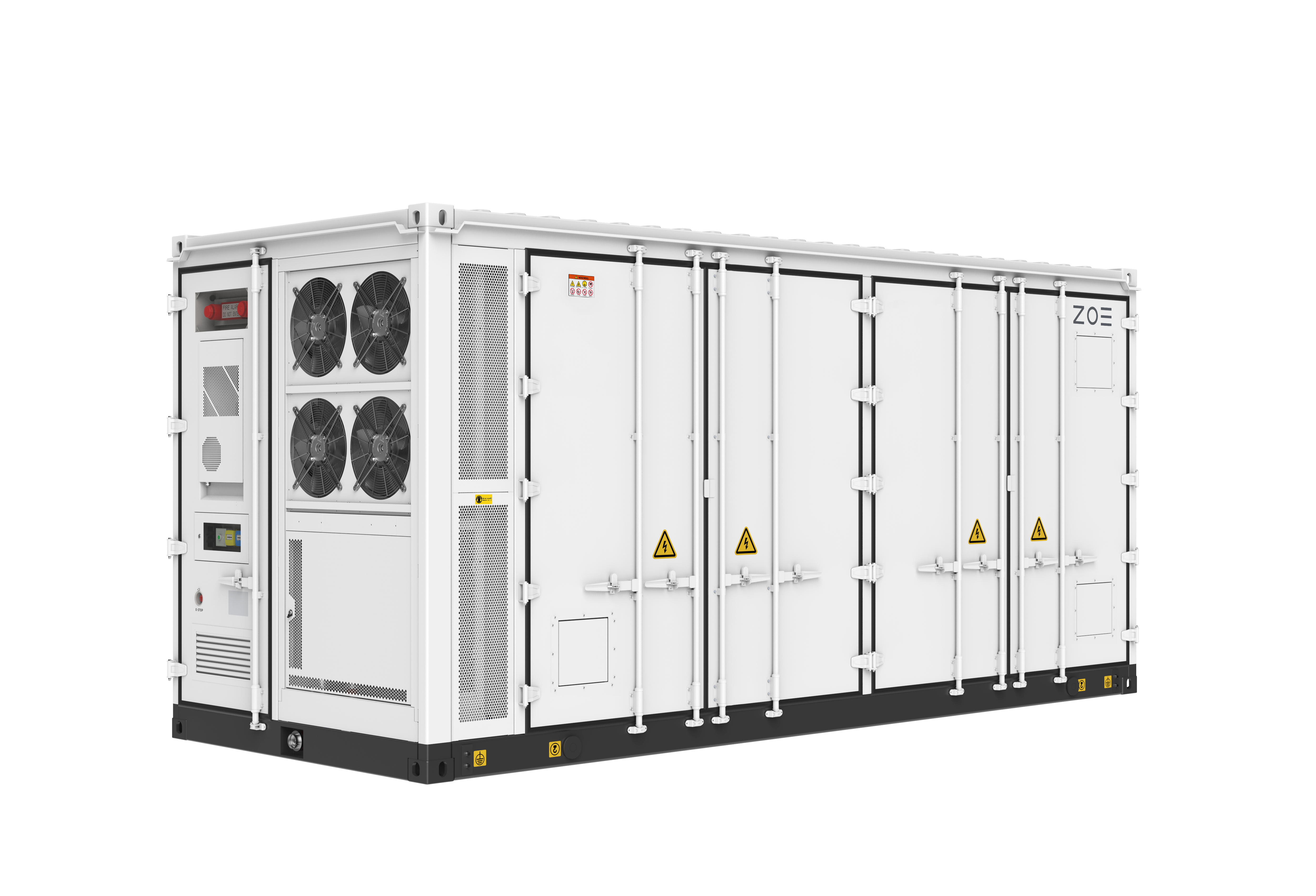

P 1300-1H-Energy Storage System

Z BOX-P

P 1300-1H

ALL-IN-ONE ESS Container

1260kW/1313kWh | 1C

Flexible applications

Efficient charging and discharging

Safety and reliability

Convient O&M

Highly efficient liquid cooling and heating for extreme environments

Compact design with Back-to-back layouts for a reduced footprint

Meet high-rate charging and discharging scenarios, with a maximum continuous power of up to 1P

Electrical safety management, overcurrent fast-breaking and arc extinguishing protection

Pack-level fire protection and prediction of thermal runaway risk

One-click system upgrade and unified management

Cloud-based monitoring allows for the quick identification of faults and reduce staff effort.

Download

Data Sheet Quick Installation Guide

Technical Specifications

Battery data

Cell type	LFP
Rated capacity	285 Ah
Serial-parallel type	6P240S
Rated capacity per pack	43.776 kWh
Pack number	6*5
System rated energy capacity	1313.28 kWh
Rated DC voltage	768 V
Rated DC voltage range	672~864 V
Rated DC current	1710 A

AC data

Rated AC power	1260 kW
Rated AC voltage	400 Vac
Rated frequency	50/60 Hz
Rated AC current	1818 A
Max. AC current	2004 A
AC wiring type	3W/ N+PE
Power factor	-1 ~ 1

General data

DOD	90%
Noise	≤80dB
Protection degree	IP 54
Cooling method	Liquid cooling/ heating
Fire suppression system	NOVEC 1230 + Aerosol
Operating temperature range	-30 ~ 55 °C ( > 45°C derating )
Relative humidity	5% ~ 95% RH
Max.working altitude	2000 m
Display	Web/ LED/ LCD
COM interfaces	RS485/ Ethernet
Dimensions (LWH)	605824382591 mm
Weight	20 T

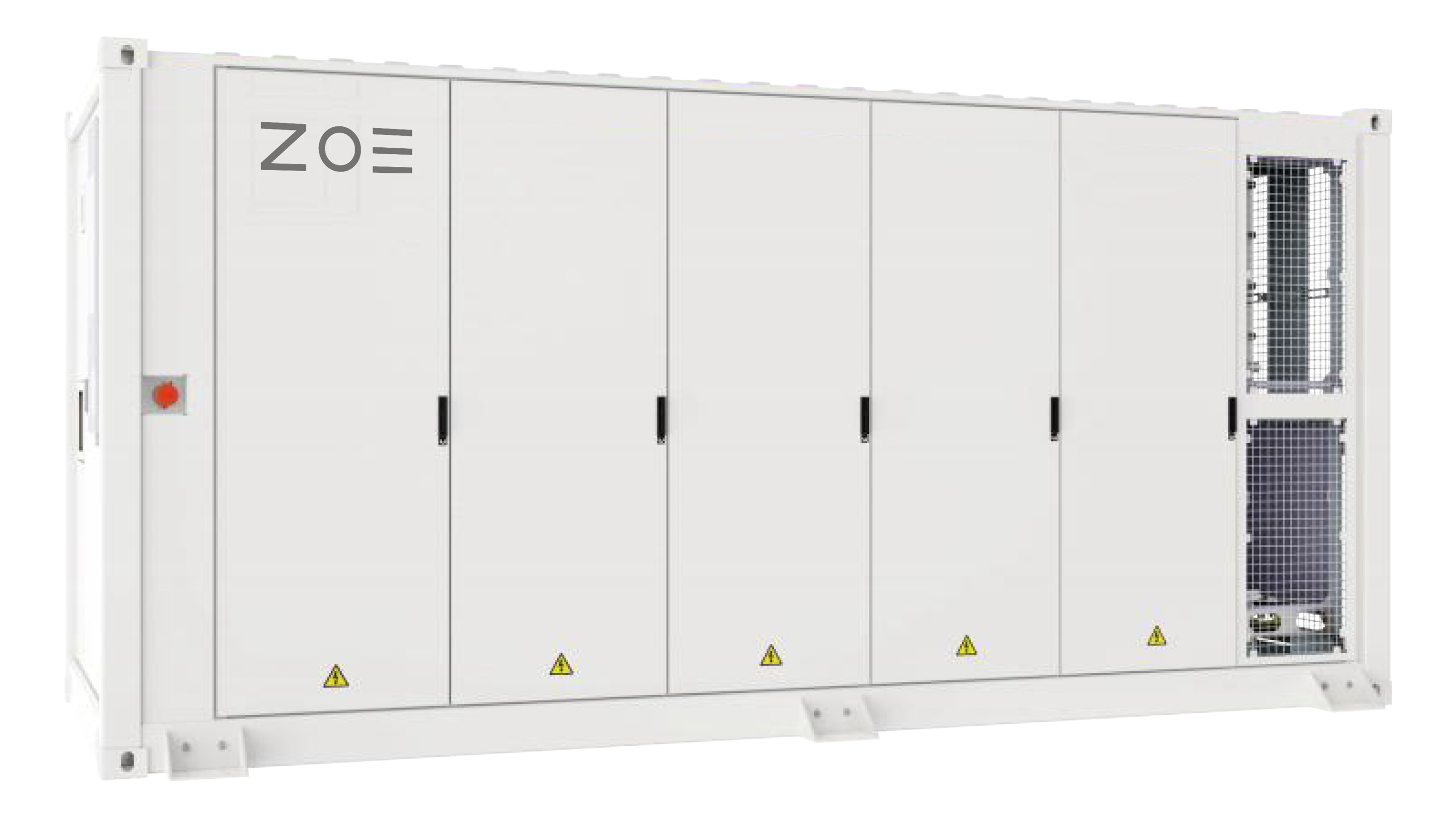

P 3400-2H P 3400-1H

Battery Container

3440kWh | 0.5C

Flexible applications

Efficient charging and discharging

Safety and reliability

Convient O&M

Highly efficient liquid cooling and heating for extreme environments

Compact design with Back-to-back layouts for a reduced footprint

Meet high-rate charging and discharging scenarios, with a maximum continuous power of up to 1P

Electrical safety management, overcurrent fast-breaking and arc extinguishing protection

Pack-level fire protection and prediction of thermal runaway risk

One-click system upgrade and unified management

Cloud-based monitoring allows for the quick identification of faults and reduce staff effort.

Download

Data Sheet User Manual

Technical Specifications

Battery data

Cell type	LFP
Rated capacity	280 Ah
Serial-parallel type	10P384S
Rated capacity per pack	43.008 kWh
Pack number	10*8
System rated energy capacity	3440.64 kWh
Rated DC voltage	1228.8 V
Rated DC voltage range	1075.2~1382.4 V

General data

DOD	95%
Noise	≤80dB
Protection degree	IP 55
Cooling method	Liquid cooling/ heating
Fire suppression system	Aerosol
Operating temperature range	-30 ~ 50 °C (> 45°C derating)
Relative humidity	0% ~ 95% RH (non-condensing)
Max.working altitude	3000 m
Display	Web
COM interfaces	Modbus TCP/IP
Dimensions (LWH)	605824382896 mm
Weight	33.5±0.5 T

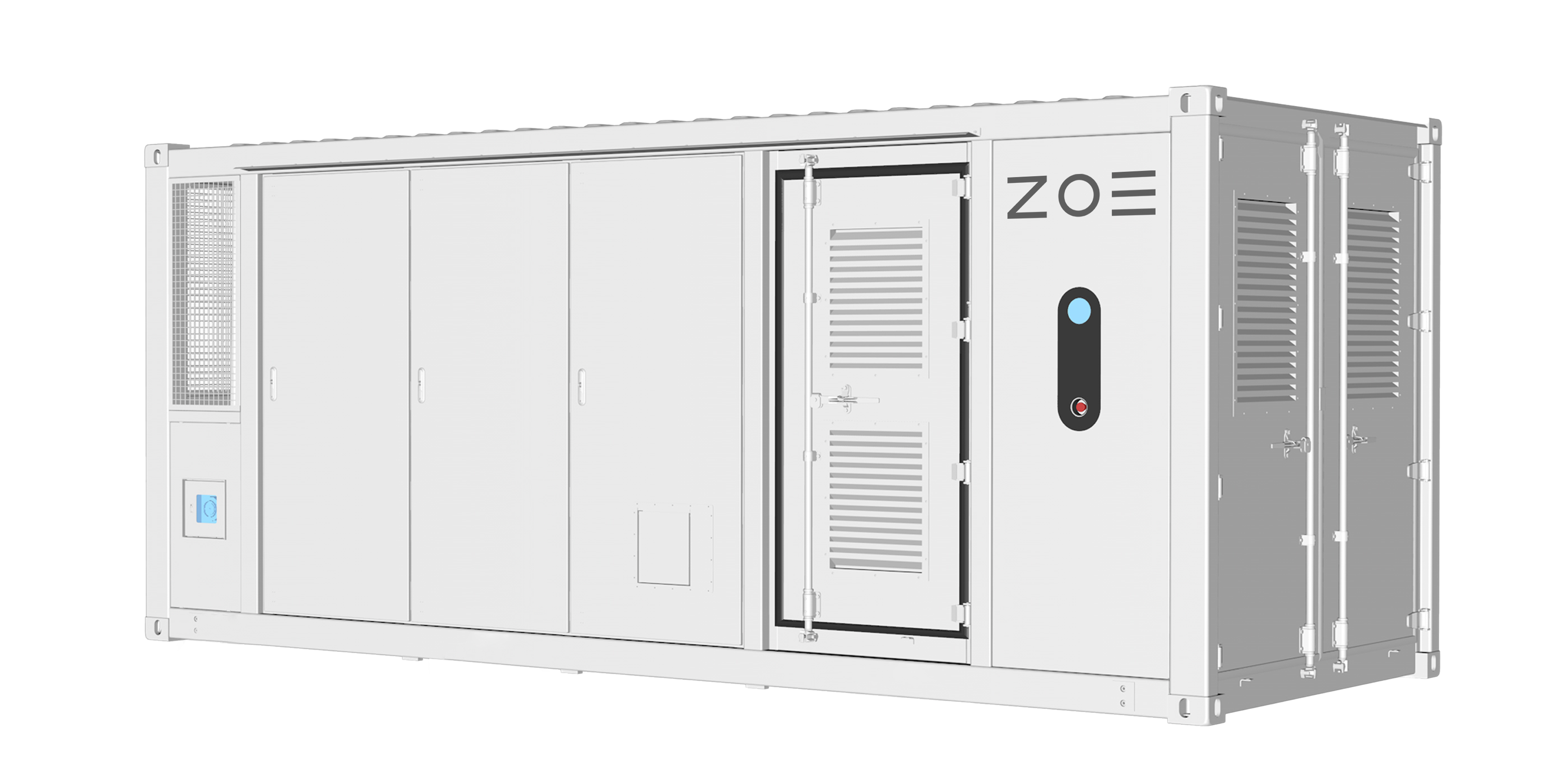

P 5000-2H

Battery Container

5015kWh l 0.5C

Safety

Lower cost

Efficient O&M

Intelligent safety management

Higher Energy Density

Transportation of complete system

Intelligent Design for back-to-back and end-to-end Layout

Download

Data Sheet

Technical Specifications

Battery data

Cell type	LFP
Rated capacity	314 Ah
Serial-parallel type	12P416S
Rated capacity per pack	104.499 kWh
Pack number	12*4
System rated energy capacity	5015.96 kWh
Rated DC voltage	1331.2 V
Rated DC voltage range	1164.8~1497.6 V

General data

DOD	90%
Noise	≤80dB
Protection degree	IP 55
Cooling method	Liquid cooling/ heating
Fire suppression system	NOVEC 1230 /Aerosol (optional)
Operating temperature range	-30 ~ 50 °C ( > 45°C derating)
Relative humidity	0% ~ 95% RH
Max.working altitude	3000 m
Display	Web
COM interfaces	RS485/ CAN/ Ethernet
Dimensions (LWH)	605824382896 mm
Weight	41 T
