I 156-1H-Energy Storage System

Z BOX-I

ALL-IN-ONE ESS Cabinet

I 156-1H

150kW / 156kWh | 1C

Global Innovation

Efficient & Flexible

Safe & Reliable

Intelligent Management

6 models in a single cabinet for application-specific use

Millisecond response, suitable for fast frequency regulation

Plug and play design, highly integrated for easier transport and installation

Modular design for easy system expansion

Integrates AI pre-alarm

Ultra safe design with complete FFS

Intelligent fan cooling ensures longer lifespan

System efficiency≥89%

Download

Data Sheet User Manual Quick Installation Guide Maintenance Manual

Technical Specifications

Battery data

Product Type	I01-90KN-94	I01-100KN-104	I01-110KN-114	I01-120KN-125	I01-120KN-135	I01-150KN-156
Cell type	LFP
Rated capacity	102 Ah
Serial-parallel type	2P144S	2P160S	2P176S	2P192S	2P208S	2P240S
Rated capacity per pack	10.444 kWh	10.444 kWh	10.444 kWh	10.444 kWh	10.444 kWh	10.444 kWh
Pack number	9	10	11	12	13	15
System rated energy capacity	93.996 kWh	104.44 kWh	114.884 kWh	125.328 kWh	135.772 kWh	156.66 kWh
Rated DC voltage	460 V	512 V	563 V	614 V	665 V	768 V
Rated DC voltage range	403~518 V	448~576 V	492~633 V	537~691 V	582~748 V	672~864 V

AC data

Product Type	I01-90KN-94	I01-100KN-104	I01-110KN-114	I01-120KN-125	I01-120KN-135	I01-150KN-156
Rated AC power	90 kW	100 kW	110 kW	120 kW	120 kW	150 kW
Rated AC voltage	400 Vac
Rated frequency	50/60 Hz
Rated AC current	129 A	144 A	158 A	173 A	173 A	216 A
AC wiring type	3W/N+PE
Power factor	-0.8 ~ 0.8

General data

Product Type	I01-90KN-94	I01-100KN-104	I01-110KN-114	I01-120KN-125	I01-120KN-135	I01-150KN-156
DOD	95%
Protection degree	IP 54
Cooling method	Intelligent fan cooling
Fire suppression system	Novec 1230 + Aerosol
Operating temperature range	-30 ~ 60 °C ( > 45°C derating)
Relative humidity	0% ~ 95% RH (non-condensing)
Max.working altitude	2000 m
Display	Touch screen
COM interfaces	WiFi + LAN+4G
Dimensions (LWH)	150013002200
Weight	2290±50 kg	2375±50 kg	2460±50 kg	2545±50 kg	2630±50 kg	2800±50 kg

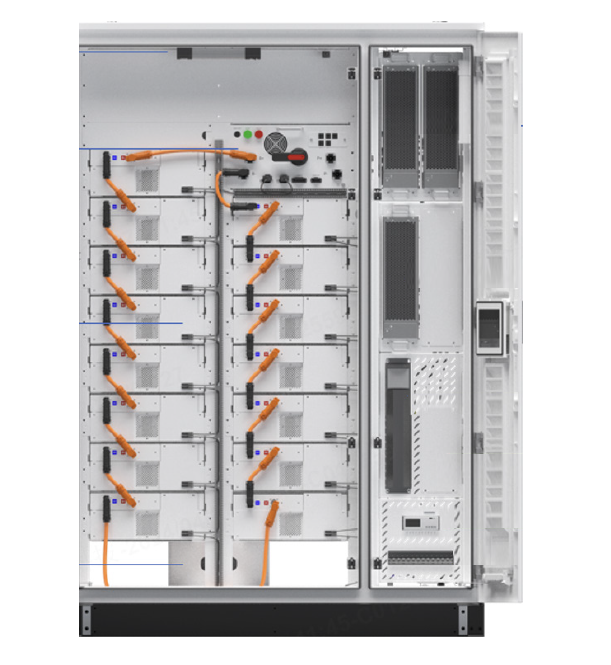

A Look on the Inside

Optimized for system safety, efficiency, and economy

ZOE Energy's storage system is meticulously designed to enhance system safety, improve energy efficiency, and optimize cost-effectiveness, striving for comprehensive performance optimization of energy storage solutions.

Safety:

·Four-layer safety system, creating an energy storage system that ensures peace of mind.

Efficiency:

·Supports commercial and industrial energy storage products with a 1-hour system.

·Capacity ranges from 94kWh to 2.34MWh, offering highly flexible configuration options.

Economy:

·The system maximizes cost-effectiveness through real-time monitoring and intelligent O&M via the EMS Cloud Platform, ensuring safety and profitability.

·Advanced data analytics enhance power generation forecasts, battery diagnostics, and VPP dispatch strategies, driving economic efficiency and reducing overall costs.
